Standard Series (Light Series) Pipe Clamp

The range of standard series or light series pipe clamps as per are normally used for general purpose.

Features:

  • Designed as per DIN – 3015
  • Standard pipe – Tube clamps available in Plastic Polypropylene and Polyimide , Aluminum clamp bodies with steel / S.S plates & bolts
  • P range above 1500 PSI (100 BAR) for application in Steel / stainless steel piping system.

Material:

  • Jaws: Polypropylene, Polyamide, Aluminum
  • Top plate: Steel, SS 304, SS 316
  • Base plate: Steel, SS 304, SS 316
  • Bolt: Steel, SS 304, SS 316

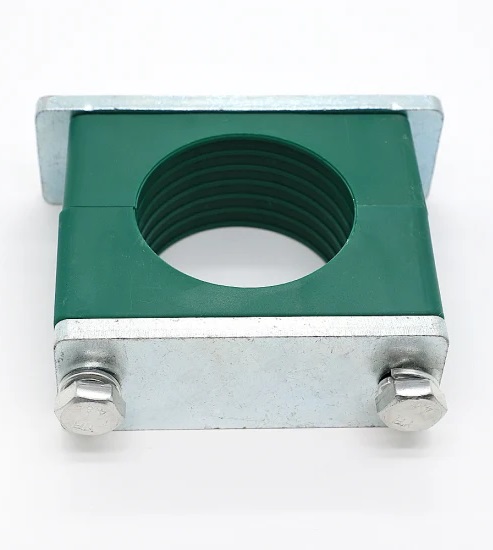

Heavy Series Pipe Clamp

The range of heavy duty series pipe – tube clamps are normally used for support piping system in general applications. W.P. range of pipe – tube clamps with more than 1500 PSI (100 BAR) and up to 8000 psi (600 BAR) find application in Steel / stainless steel Piping System.

Features :

  • Designed as per DIN – 3015
  • Standar d pipe – Tube clamps available in Plastic Polypropylene and Polyimide, aluminum clamp bodies with Steel / S.S plates & bolts
  • P range above 1500 PSI for application in Steel / stainless steel piping system.

Material :

  • Jaws: Polypropylene, Polyamide, Aluminum
  • Top plate : Steel, SS 304, SS 316
  • Base plate: steel, SS 304, SS 316
  • Bolt: Steel, SS 304, SS 316

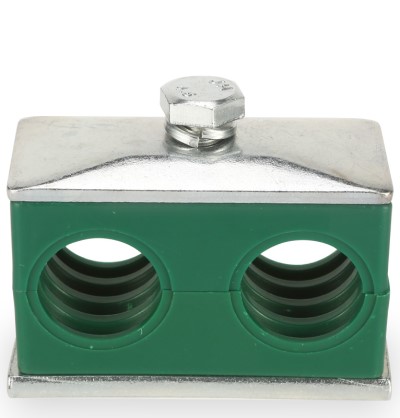

Twin Series Pipe Clamp

The range of series pipe – tube clamps as per DIN – 3015 are design to clamp two identical Pipe – tube to the Piping Systems. These pipe – tube clamps feature thick plates & heavy bolts to resist High Pressure Piping Application.

Features :

  • Designed as per DIN – 3015
  • Standard pipe – Tube clamps available in Plastic – PP / PA with Steel & stainless steel plates & bolts & also can be availed along with Multilayer, Welding plates, Rail Nuts, etc.
  • P range above 1500 PSI for application in Steel / stainless steel piping system.

Material :

  • Jaws: Polypropylene, Polyamide, Aluminum
  • Top plate: Steel, SS 304, SS 316
  • Base plate: Steel, SS 304, SS 316
  • Bolt: Steel, SS 304, SS 316

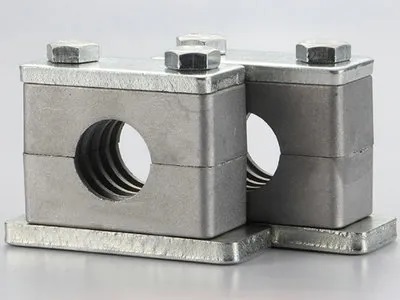

Aluminum Series Pipe Clamp

These range of aluminum pipe – tube clamps are normally used high temperature applications (more than 260 degree Celsius) & the W.P range more than 1500 PSI (100 BAR) and up to 8000 PSI (600 BAR) in the Steel / Stainless Steel Piping System.

Feature :

  • Designed as per DIN – 3015.
  • Aluminum pipe – Tube clamp bodies’ steel / S.S. plates & bolts.
  • Constructed through high tensile aluminum extrusion
  • Available along with multilayer, welding plates, rail nuts, etc.

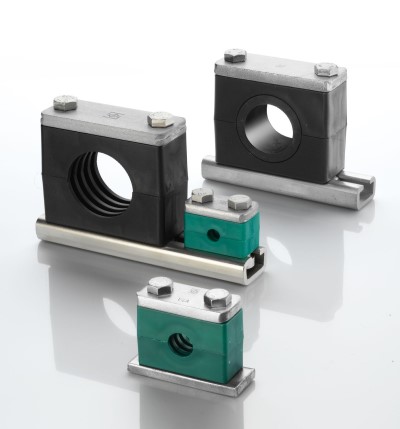

Rail Nut Pipe Clamp

These range of standard series rail nut mounted clamps is designed as per DIN – 3015 & pipe clamp is normally used in general steel piping for support where pipe support to be given with specific distance or adjustment. Rail mounted clamp us also used where different OD types of clamp is to be given in one line.

Features:

  • Designed as per DIN- 3015.
  • Easy to Maintain.
  • Easy to install.

Material:

  • Jaws : Polypropylene, Polyamide, Aluminum
  • Top plate : Steel, SS 304, SS 316
  • Base plate : Steel, SS 304, SS 316
  • Bolt : Steel, SS 304, SS 316

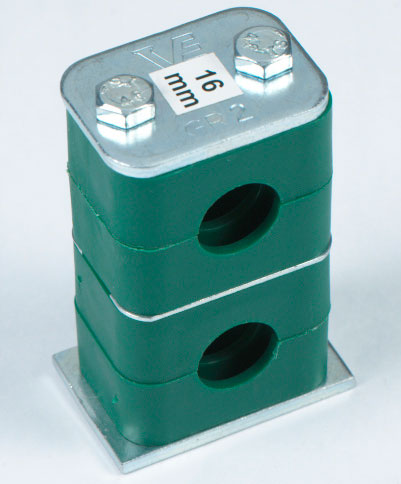

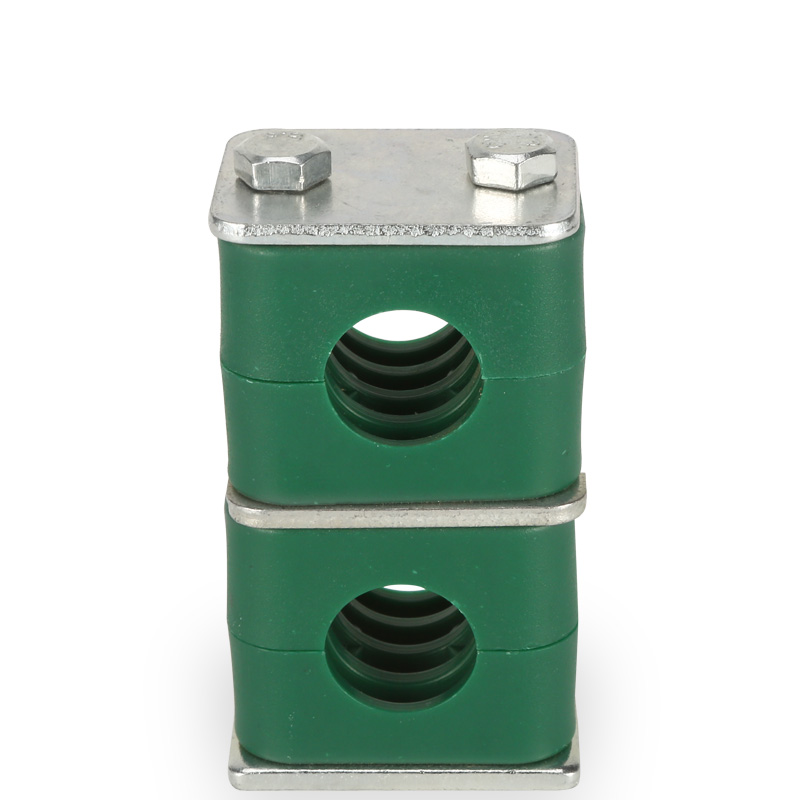

Multilayer Pipe Clamp

These range Multilayer pipe clamps DIN – 3015 tube clamps are used for securing a tool to a Multi-piece panel assembly. They vertically clamp in 2 layers / 3 layers up to any numbers of layers but recommended up to 3 layers.

Features:

  • Available in plastic / aluminum bodies with steel or stainless plates and bolts.
  • Resistant to corrosion and rust
  • Multilayer pipe – Tube clamps are specially designed for light duty / heavy duty & twin series only.

Material:

  • Jaws: Polypropylene, Polyamide, Aluminum
  • Top plate: Steel, SS 304, SS 316
  • Base plate: Steel, SS 304, SS 316
  • Bolt: Steel, SS 304, SS 316
